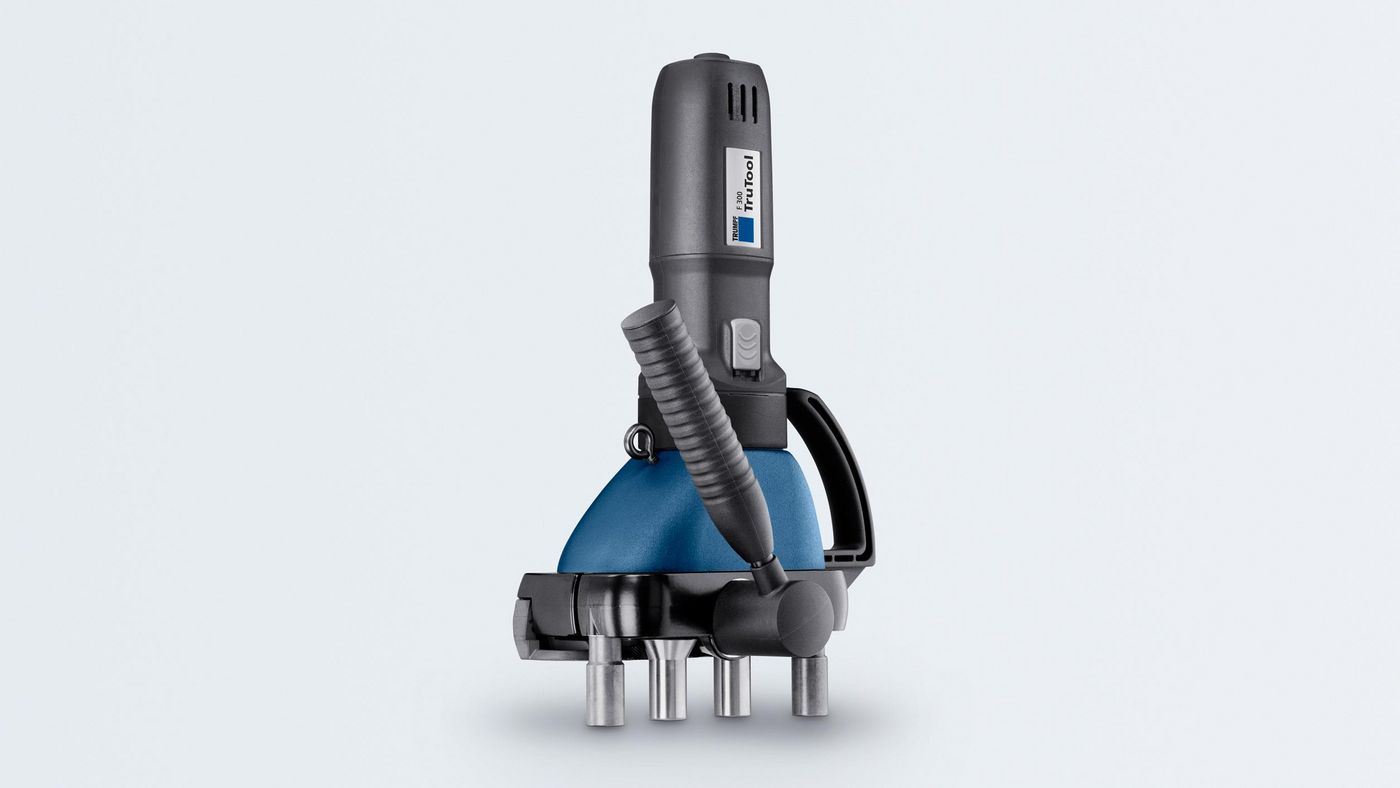

TruTool F 300

Request a quoteRead features

For cost-effective work directly at the installation site

The TruTool F 300 is ideal for closing Pittsburgh lock seams on straight or curved ducts. You can work quickly with the quiet roll/glide process and achieve a tight connection. The sheet thickness range for this is 0.75 mm to 1.25 mm for mild steel. The adjustment to the sheet thickness is automatic.

Flange height and sheet thickness
Suitable for flange heights of 9 mm – 13 mm and for sheet thicknesses of 0.75 mm – 1.25 mm.

Excellent process reliability
Automatic adjustment to the sheet thickness gives you consistent seam results.

Area of application
With the TruTool F 300, you can lock seams on straight and curved ducts.


Specification Video

  1. Maximum sheet thickness, steel 400 N/mm² (min.)

    0.75 mm

    Maximum sheet thickness, steel 400 N/mm² (max.)

    1.25 mm

    Flange height (B) with sheet thickness 0.75 - 1.0

    9 - 11 mm

    Flange height (B) with sheet thickness > 1.0 - 1.25

    11 - 13 mm

    Smallest inner radius (preformed)

    150 mm

    Smallest outer radius

    300 mm

    Working speed

    4 m/min - 7 m/min

    Nominal power consumption

    550 W

    Weight without cable

    5.4 kg
