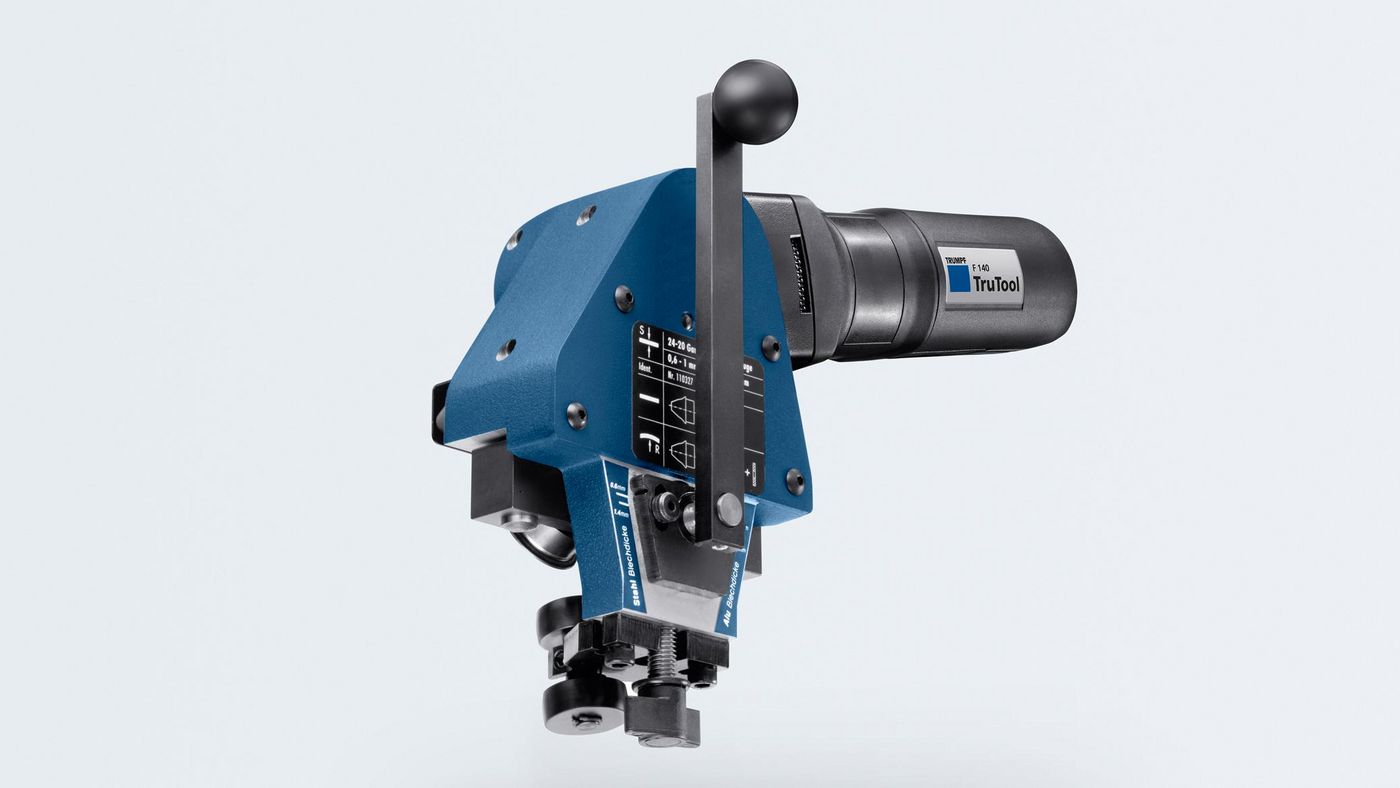

TruTool F 140

Request a quoteRead features

High seam quality – even in stainless steel

With the TruTool F 140, Pittsburgh lock seams on straight or curved ducts with sheet thicknesses of 0.6 mm – 1.4 mm can be closed with ease. The machine is also ideally suited to processing stainless steel. The TruTool F 140 adapts automatically to the sheet thickness. There is also no need for refitting when processing formed or folded pieces.

Tightly sealed, even in stainless steel
The TruTool F 140 is an excellent match for processing stainless steel up to a thickness of 0.6 mm.

Flange height and sheet thickness
Suitable for flange heights of 8 mm – 12 mm and for sheet thicknesses of 0.6 mm – 1.4 mm.

Excellent process reliability
Automatic adjustment to the sheet thickness gives you consistent seam results.

Area of application
With the TruTool F 140, you can lock seams on straight and curved ducts.


Specification Video

  1. Maximum sheet thickness, steel 400 N/mm² (max.)

    1.4 mm

    Minimum sheet thickness, steel 400 N/mm² (max.)

    0.6 mm

    Flange height (B) with sheet thickness 0.45 - 1.0

    8 - 10 mm

    Flange height (B) with sheet thickness> 1.0 - 1.4

    10 - 12 mm

    Smallest inner radius (preformed)

    300 mm

    Smallest outer radius

    500 mm

    Flange height (H)

    10 - 15 mm

    Working speed

    6 m/min - 10 m/min

    Nominal power consumption

    550 W

    Air gap (c)

    2.5 mm

    Weight without cable

    4.2 kg
