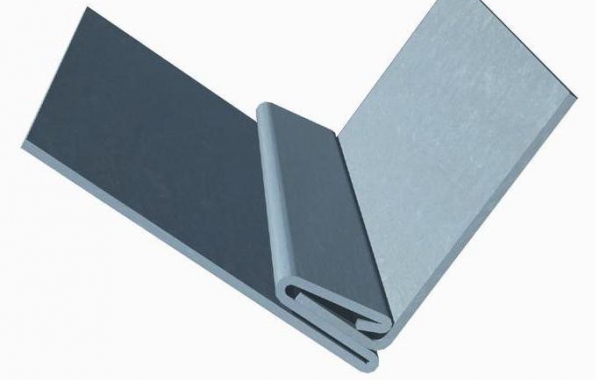

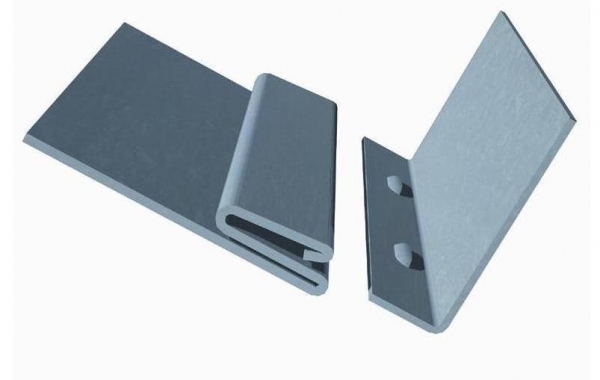

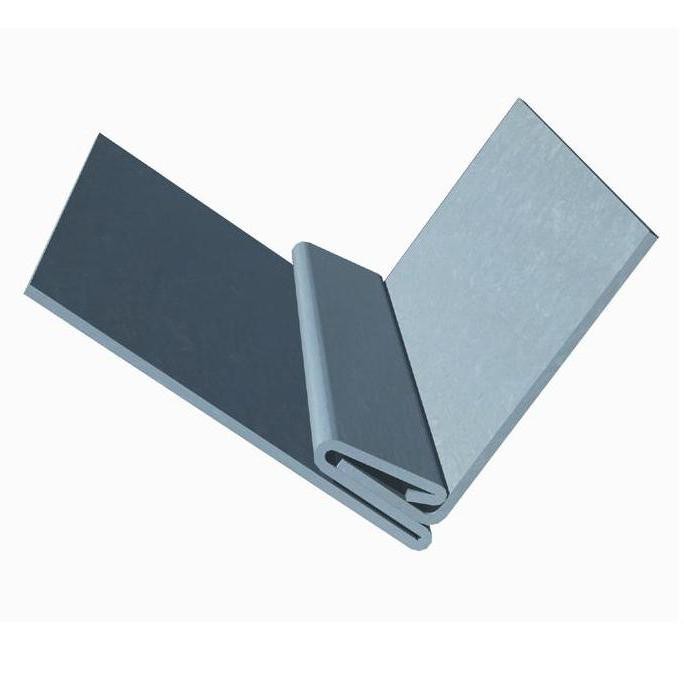

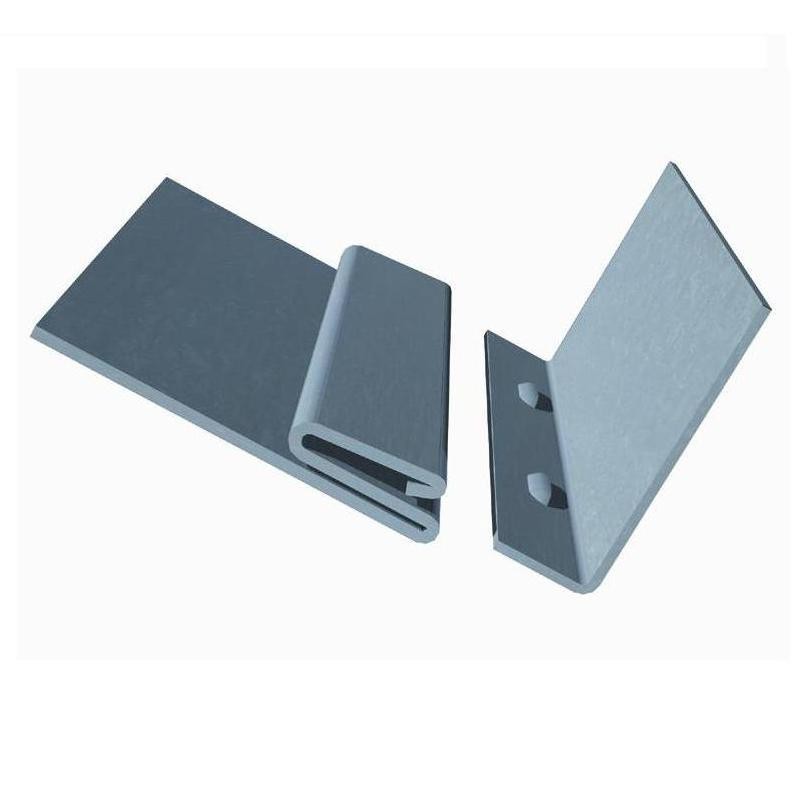

SearchThis system is used as a simple joining method to join between 0.5 and 1.2mm sheet steel at right angles, and is designed to lock rigidly together, without the need for a post seaming operation.

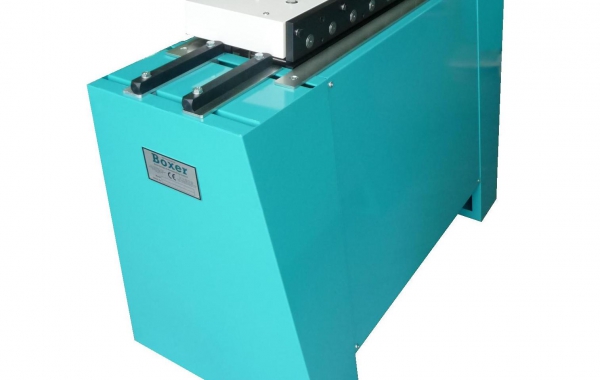

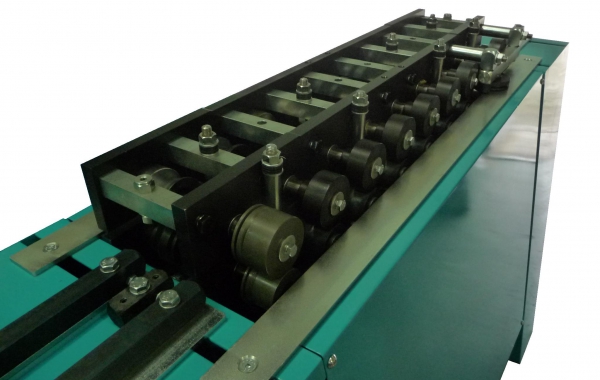

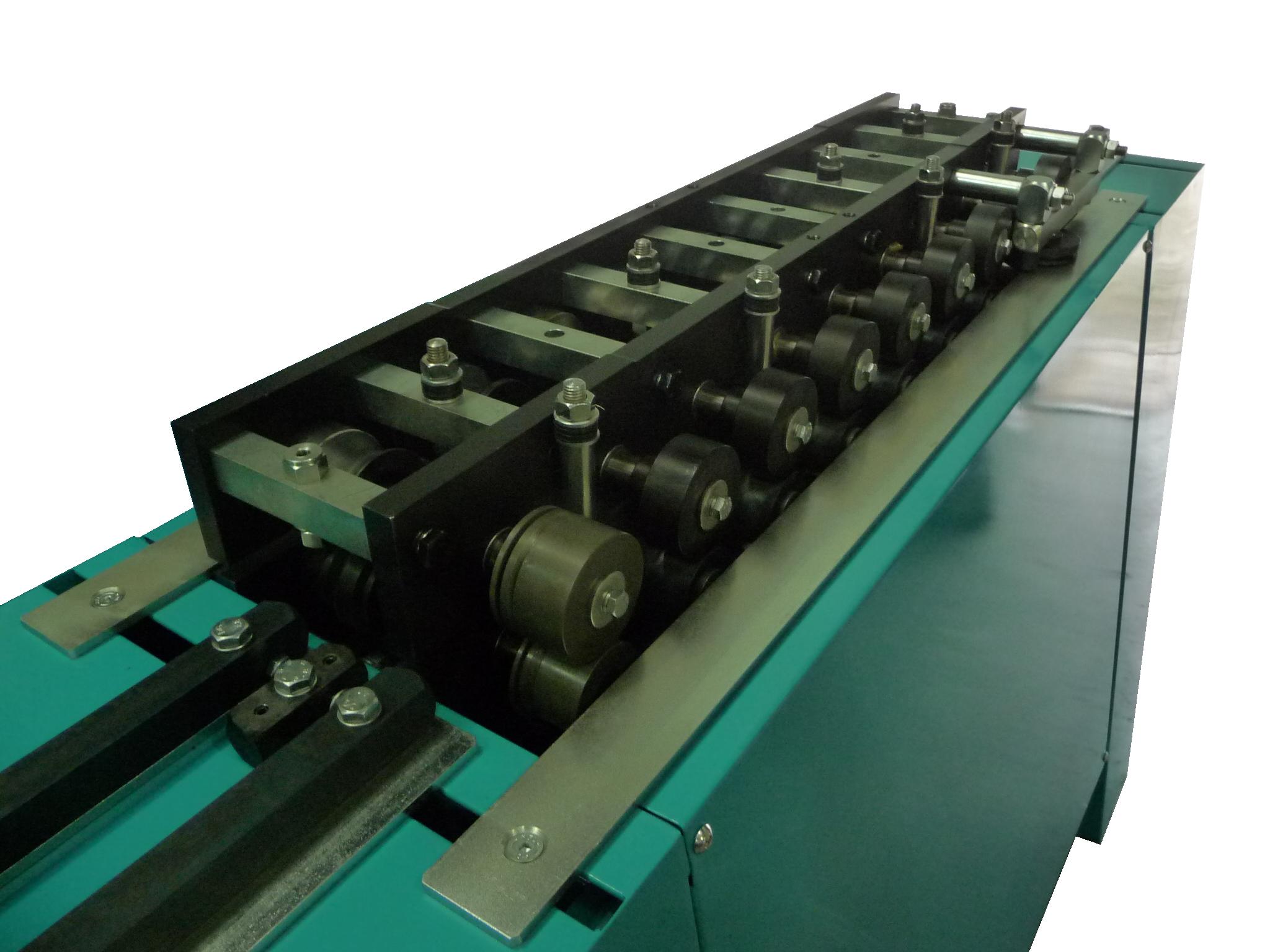

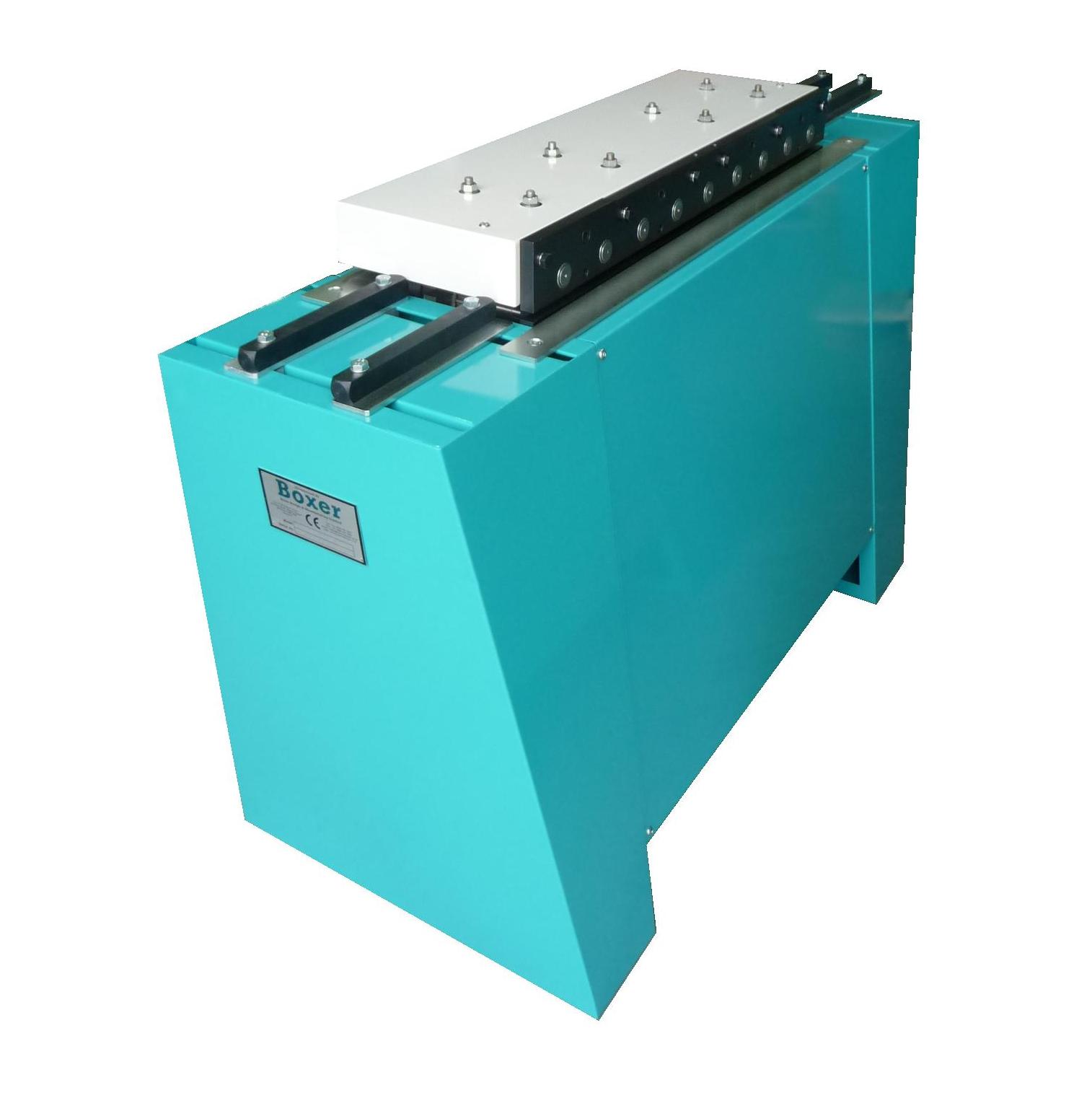

The 18s Button Punch machine has nine forming stages, and is fitted with the female profile to one side, and the male profile to the opposite side. Unlike most competitors machines, our Button Punch female roll set incorporates automatic material gauge compensation to ensure tight definition of the seam throughout the gauge range. The female profile has a pocket depth of 14mm and uses 35mm of material when forming.
When used in conjunction with a button punch autoguide flanging machine, it is possible to join a curved edge at right angles to another sheet. The male roller tooling set can also be interchanged for 1 of 11 roll sets as shown below.

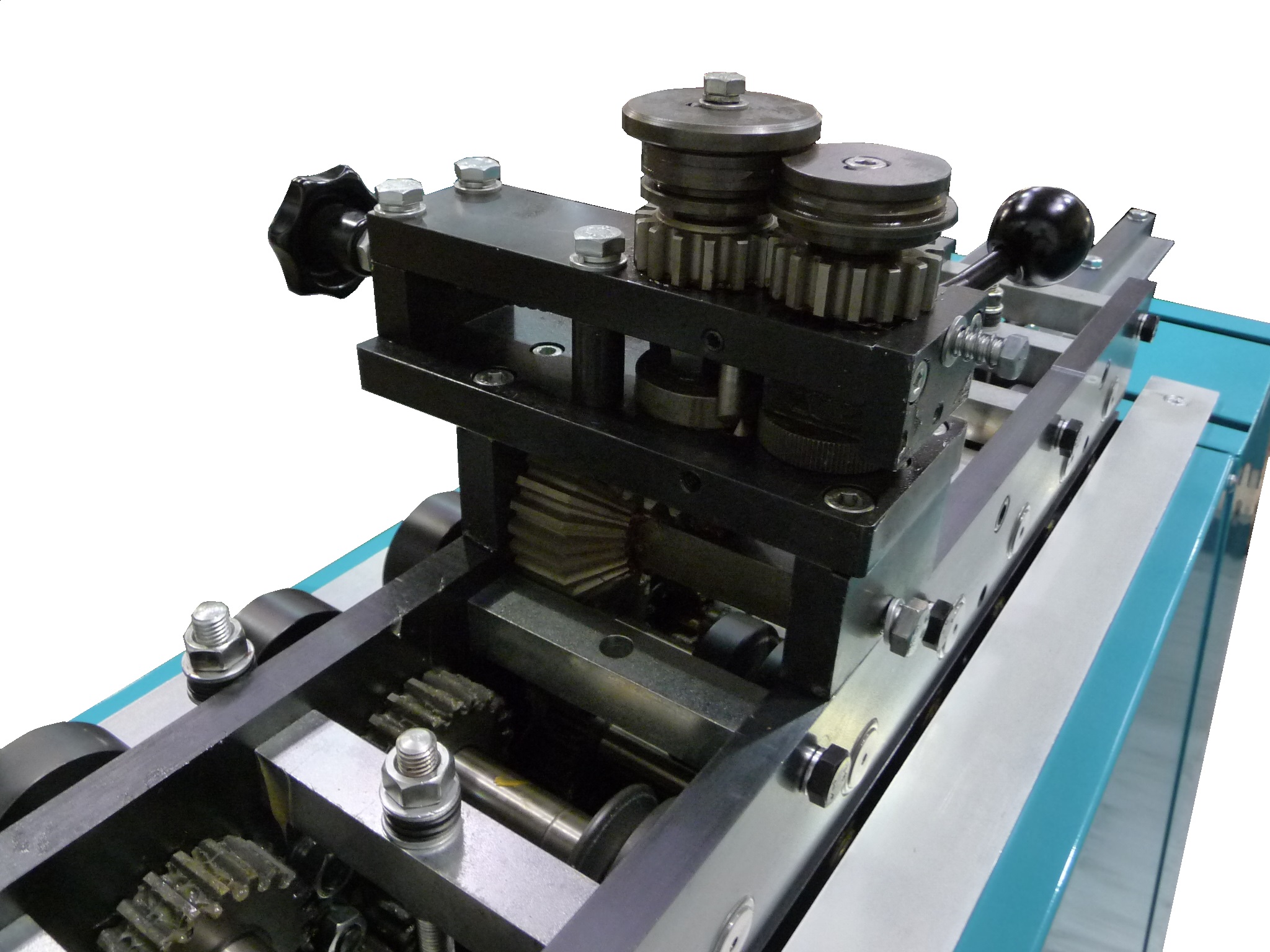

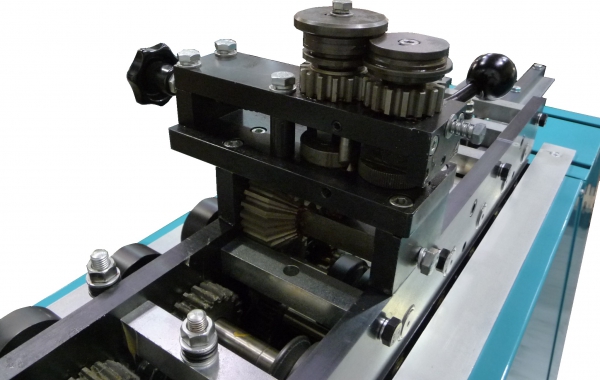

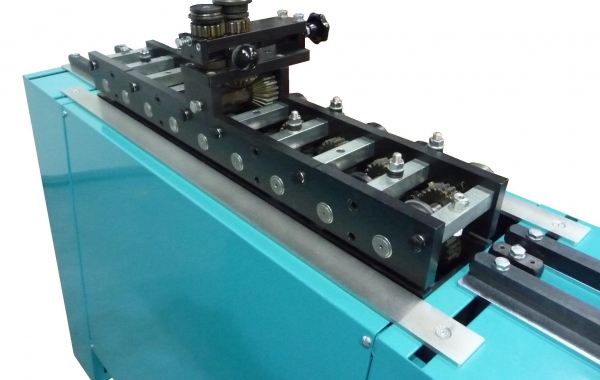

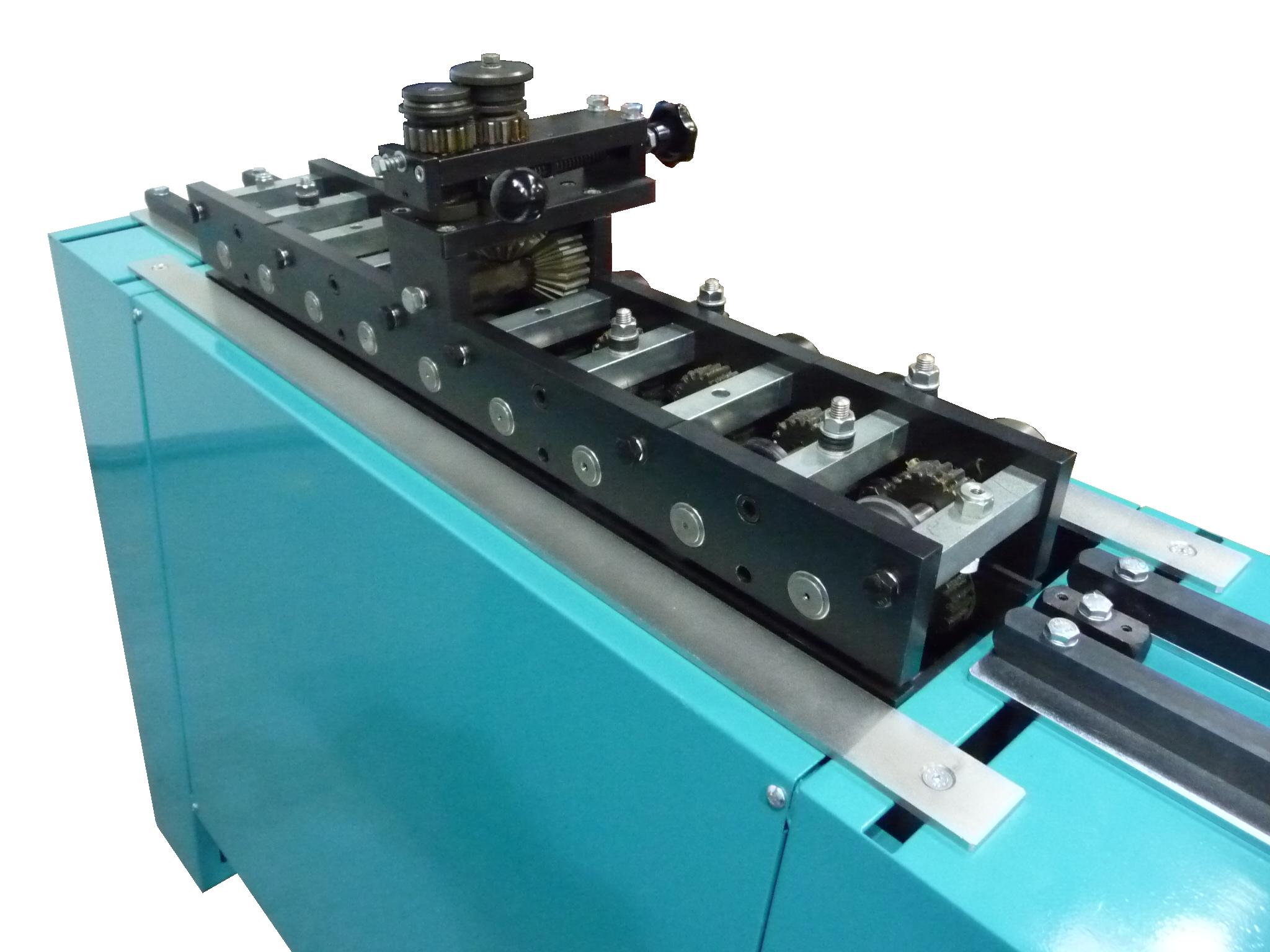

A flanging attachment can also be added to the top of the machine, giving the ability to form a 10mm flange on internal and external curved edges. Please see final options below.
|
Profile |
Gauge mm |
Metal used mm |
Size range mm |
|
Button Punch (fitted as standard)  |
0.5 – 1.2 |
Female - 34 male - 12 |
14 pocket 14 leg |
|
Small Pittsburgh  |
0.5 – 1.0 |
22 |
8.5 pocket |
|
Double Seam Small Double Seam
|
0.7 – 1.6 0.5 – 1.0 |
15.5 per edge 12.5 per edge |
12.5 seam 10.5 seam |
|
Plain Seam
|
0.7 – 1.0 |
12.5 |
12.0 |
|
Standing Seam
|
1.0 – 1.6 |
35 |
19 high |
|
Right Angle Flange
|
0.7 – 1.6 |
10 |
11 high |
|
Drive Cleat
|
0.5 – 1.0 |
54 strip |
28 wide |
|
Radius Cleat
|
0.5 – 1.0 |
54 strip |
28 wide |
|
Large Safe Edge Small Safe Edge
|
0.7 – 1.6 0.5 – 1.0 |
14 |
15 return |
|
3 in 1
|
0.5 – 1.0 |
43 – 3 bend 30 – 2 bend 15 – 1 bend |
16 high |
|
Flanging Attachment
|
0.4 - 1.0 |
9 |
10 high |
