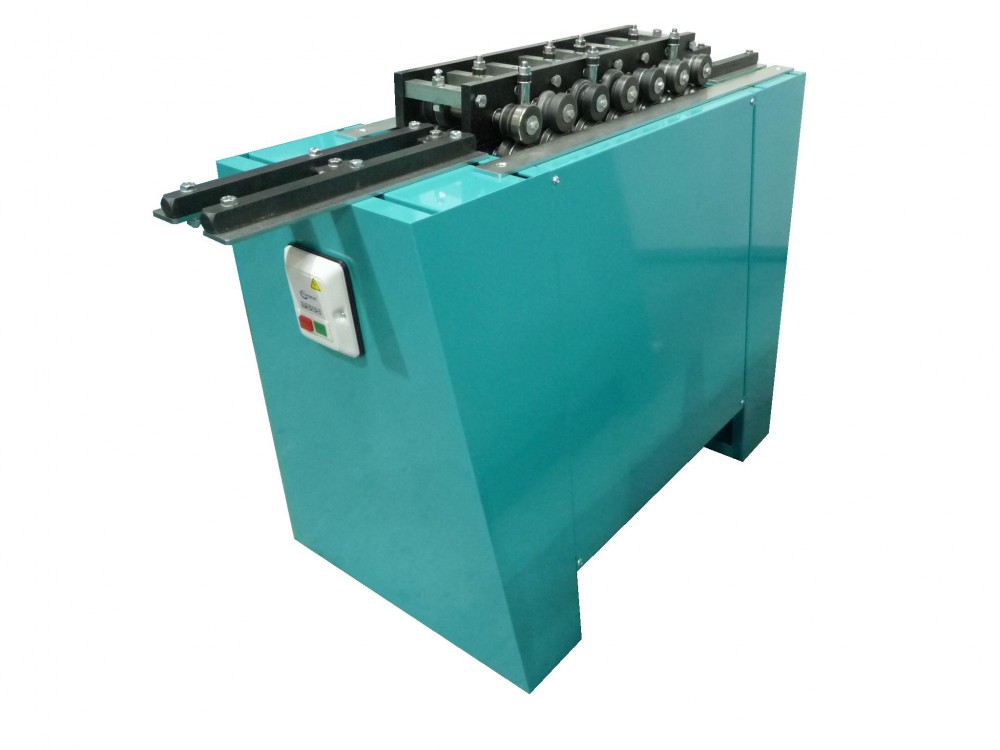

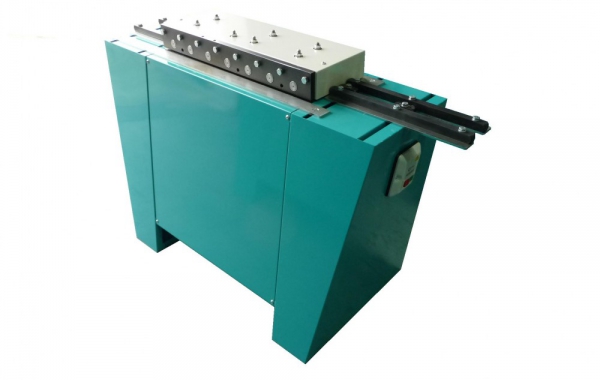

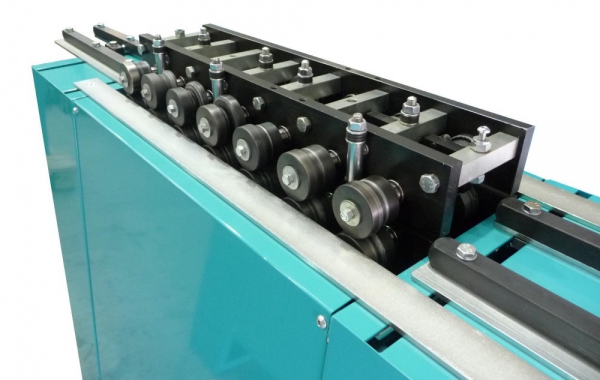

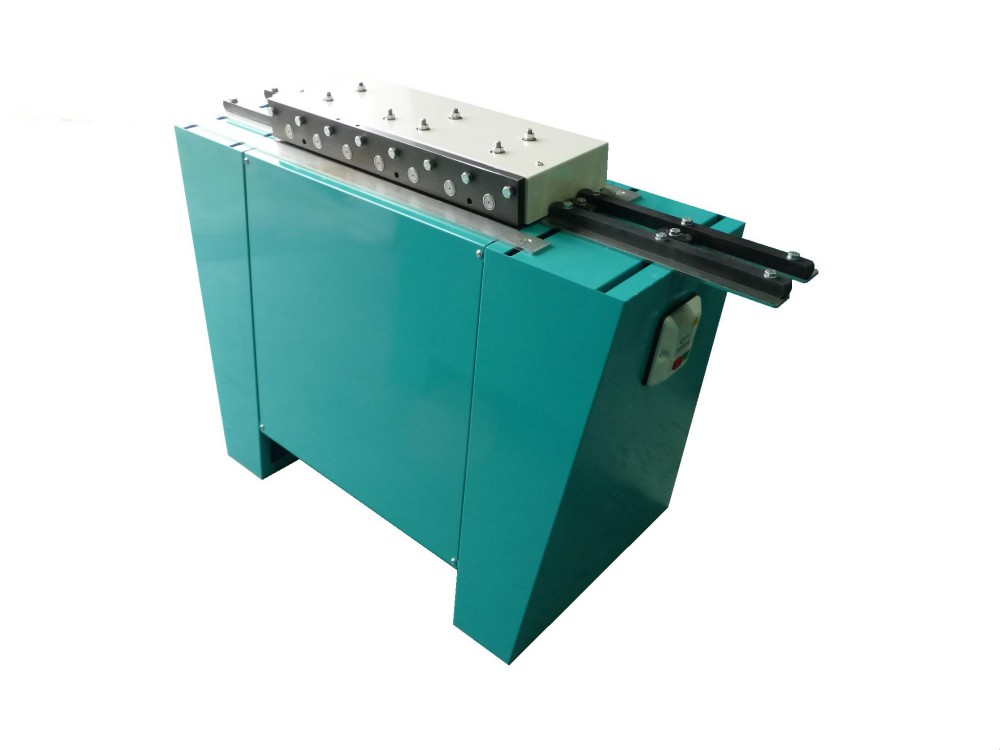

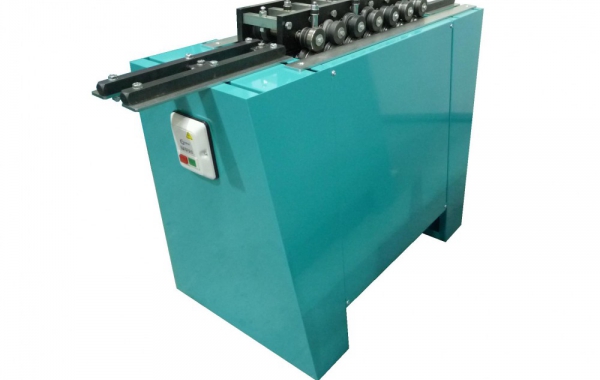

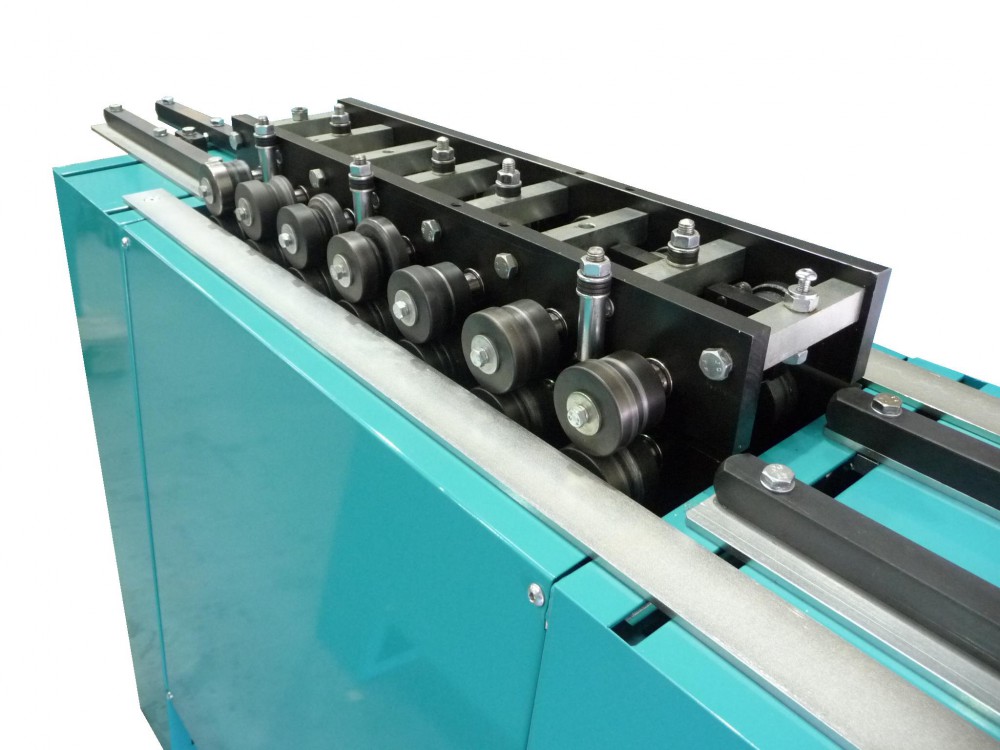

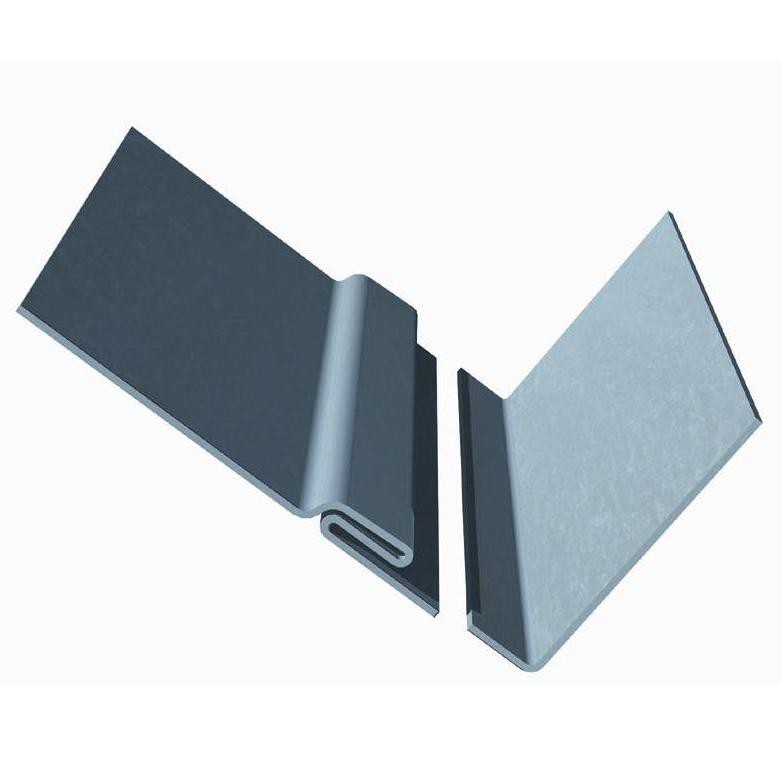

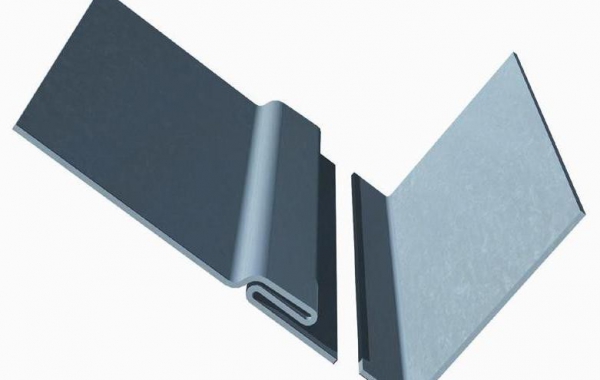

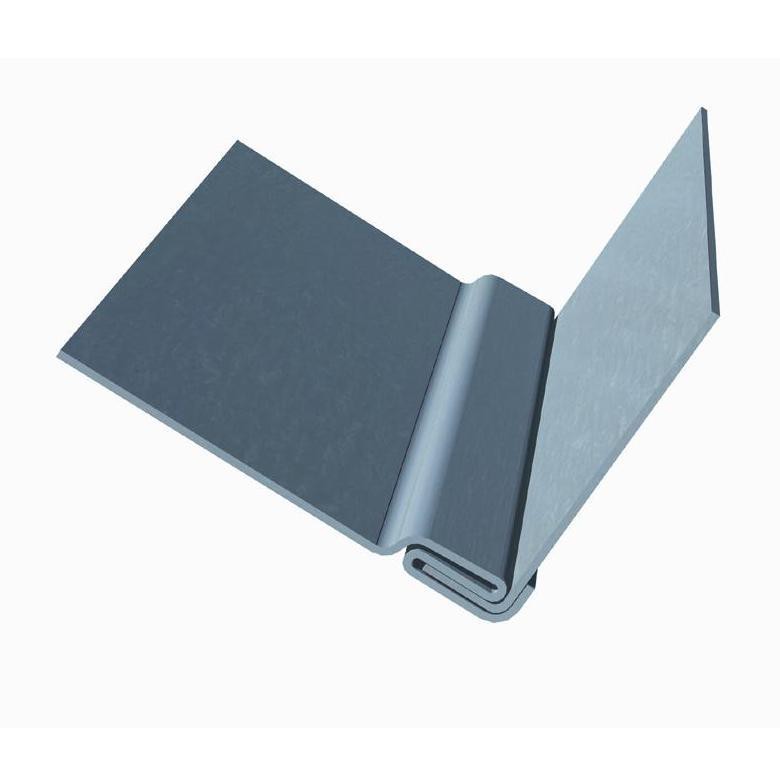

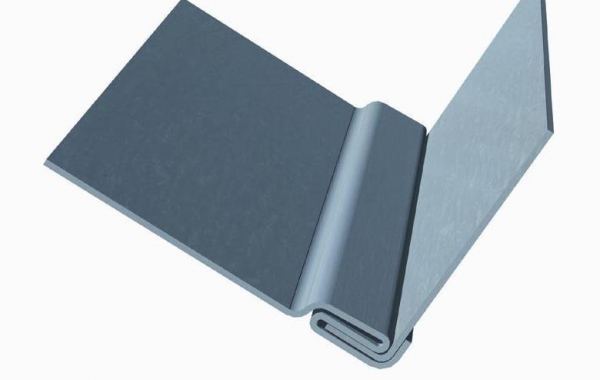

SearchThe 16s Pittsburgh rolls are fitted as standard to one side of the seven-stage machine with the option to fit one of 11 cnc machined roll sets to the outboard extension shafts. Unlike most competitors machines, our 16s Pittsburgh roll set incorporates automatic material gauge compensation to ensure tight definition of the seam throughout the gauge range of 0.7 to 1.6mm. This Pittsburgh tooling has a pocket size of 12.5mm and uses 33mm to form the seam.

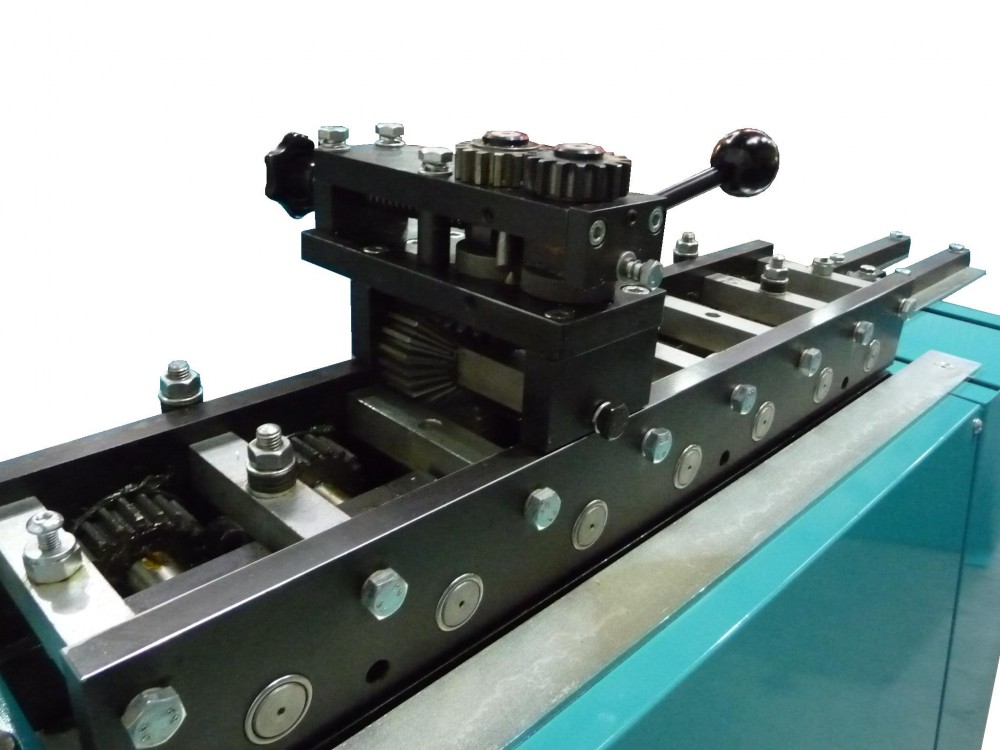

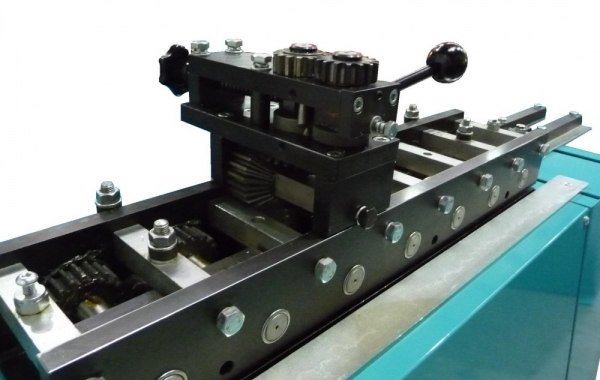

A flanging attachment can also be added to the top of the machine, giving the ability to form a 10mm flange on internal and external curved edges. Please see final options below.
We can also supply Trumpf seam lockers to complement our Pittsburgh machines.
|
Profile |
Gauge mm |
Metal used mm |
Size range mm |
|
Large Pittsburgh (fitted as standard)  |
0.7 – 1.6 |
33 |
12.5 pocket |
|
Small Pittsburgh  |
0.5 – 1.0 |
22 |
8.5 pocket |
|
Double Seam Small Double Seam
|
0.7 – 1.6 0.5 - 1.0 |
15.5 per edge 12.5 per edge |
12.5 seam 10.5 seam |
|
Plain Seam
|
0.7 – 1.0 |
12.5 |
12.0 |
|
Standing Seam
|
1.0 – 1.6 |
35 |
19 high |
|
Right Angle Flange
|
0.7 – 1.6 |
10 |
11 high |
|
Drive Cleat
|
0.5 – 1.0 |
54 strip |
28 wide |
|
Radius Cleat
|
0.5 – 1.0 |
54 strip |
28 wide |
|
Large Safe Edge Small Safe Edge
|
0.7 – 1.6 0.5 – 1.0 |
14 |
15 return |
|
3 in 1
|
0.5 – 1.0 |
43 – 3 bend 30 – 2 bend 15 – 1 bend |
16 high |
|
Flanging Attachment
|
0.4 - 1.0 |
9 |
10 high |
